SQP Horizontal Cenment Resistor 5% 0.1Ω~500KΩ 5W 7W 15W 25W 30W
Feature:
High Load Stable high voltage performance Heat-sink performance, non-flame RoHS compliant, hlogen free, lead free
Application:
Entertainmentsystem, Power supply,Meter/Instruments system

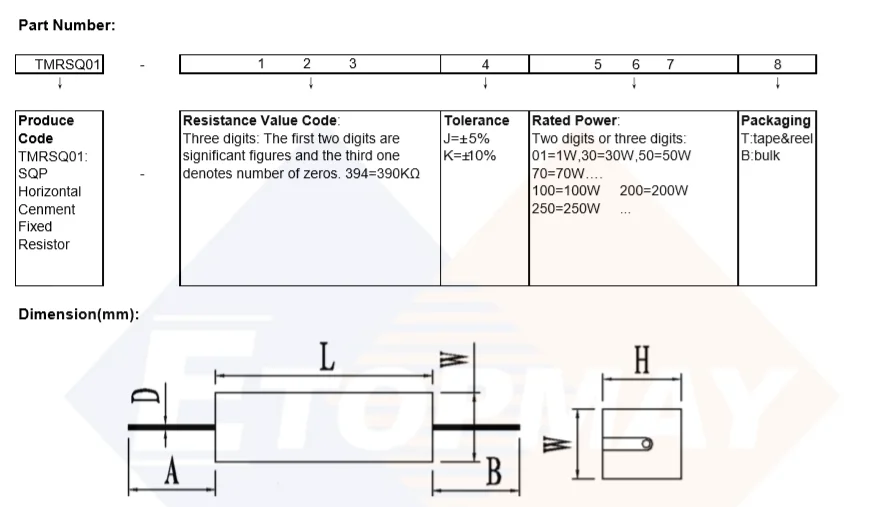

| Rating Pow+F6+A33:H44 | Dimensions |
| L±1.0 | W±0.5 | H±0.5 | A±2.0 | B±2.0 | D±2.0 |
| 1W | 14.50 | 6.50 | 6.50 | 20.00 | 20 | 0.55 |
| 3W | 22.00 | 8.00 | 8.00 | 22.00 | 22 | 0.65 |
| 5W | 22.00 | 9.50 | 9.50 | 25.00 | 25 | 0.75 |
| 7W | 35.00 | 9.50 | 9.50 | 25.00 | 25 | 0.75 |
| 10W | 48.00 | 9.50 | 9.50 | 25.00 | 25 | 0.75 |
| 15W | 48.00 | 12.50 | 12.50 | 25.00 | 25 | 0.75 |
| 20W | 63.00 | 12.50 | 12.50 | 25.00 | 25 | 0.75 |
| 30W | 75.00 | 19.50 | 19.50 | 25.00 | 25 | 0.75 |
| 50W | 90.00 | 19.50 | 19.50 | 22.00 | 22 | 0.75 |
| 100W | 133.00 | 24.00 | 21.00 | 22.00 | 22 | 0.75 |
Construction:
| NO. | Components |
| A | Padding materials |
| B | Tinned copper lead wire |
| C | Ceramic shell |
| D | Fiberglass or ceramic core or resistors film |
| E | Resistance wire or ceramic core |
| F | Iron cap |
Electrical Characteristics:
| Rated Power At 70℃ | Max Working Voltage | Max Overload voltage | Insulation Voltage | Resistance Range | Operating Temperature | T.C.R |
| 1W | 150V | 250V | 1KV | 0.1Ω~500KΩ | -55℃~+275
℃ | T50:±50PPM/℃
T100:±100PPM/℃
T200:±200PPM/℃
T350:±350PPM/℃
T500:±500PPM/℃ |
| 3W | 250V | 350V | 1KV | 0.1Ω~500KΩ |
| 5W | 350V | 500V | 1KV | 0.1Ω~500KΩ |
| 7W | 350V | 500V | 1KV | 0.1Ω~500KΩ |
| 10W | 500V | 750V | 1.5KV | 0.1Ω~500KΩ |
| 15W | 500V | 750V | 1.5KV | 0.1Ω~500KΩ |
| 20W | 500V | 750V | 1.5KV | 0.1Ω~500KΩ |
| 30W | 750V | 1000V | 1.5KV | 0.1Ω~500KΩ |
| 50W | 750V | 1000V | 1.5KV | 0.1Ω~500KΩ |
| 100W | 750V | 1000V | 1.5KV | 0.1Ω~500KΩ |
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
